RX57DRS71S4詳細信息
RX57DRS71S4
訂購熱線：13360667204
關鍵詞：11千瓦220伏電機減速器_RX57DRS71S4_RX57DR71S4
RX57DRS71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RX57DRS71S4 | 186.89 | 0.37KW | 7.40rpm | 475N.m | 28.5Kg | 6980N | 0.95 |
| RX57DRS71S4 | 172.17 | 0.37KW | 8.00rpm | 440N.m | 28.5Kg | 7140N | 1.00 |
| RX57DRS71S4 | 147.92 | 0.37KW | 9.30rpm | 375N.m | 28.5Kg | 7380N | 1.20 |
| RX57DRS71S4 | 128.77 | 0.37KW | 11.0rpm | 325N.m | 28.5Kg | 7540N | 1.35 |
| RX57DRS71S4 | 120.63 | 0.37KW | 12.0rpm | 305N.m | 28.5Kg | 7610N | 1.45 |
| RX57DRS71S4 | 106.58 | 0.37KW | 13.0rpm | 270N.m | 28.5Kg | 7700N | 1.65 |
| RX57DRS71S4 | 98.99 | 0.37KW | 14.0rpm | 250N.m | 28.5Kg | 7740N | 1.80 |
| RX57DRS71S4 | 89.71 | 0.37KW | 15.0rpm | 225N.m | 28.5Kg | 7800N | 1.95 |
| RX57DRS71S4 | 80.55 | 0.37KW | 17.0rpm | 205N.m | 28.5Kg | 7840N | 2.20 |
| RX57DRS71S4 | 69.23 | 0.37KW | 20.0rpm | 177N.m | 28.5Kg | 7890N | 2.50 |
| RX57DRS71S4 | 64.85 | 0.37KW | 21.0rpm | 166N.m | 28.5Kg | 7910N | 2.70 |
| RX57DRS71S4 | 57.29 | 0.37KW | 24.0rpm | 147N.m | 28.5Kg | 7760N | 3.10 |
| RX57DRS71S4 | 53.22 | 0.37KW | 26.0rpm | 136N.m | 28.5Kg | 7600N | 3.30 |
| RX57DRS71S4 | 48.23 | 0.37KW | 29.0rpm | 124N.m | 28.5Kg | 7380N | 3.60 |
RX57DR71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RX57DR71S4 | 106.58 | 0.75KW | 13.0rpm | 530N.m | 34Kg | 5490N | 0.85 |
| RX57DR71S4 | 98.99 | 0.75KW | 14.0rpm | 490N.m | 34Kg | 6900N | 0.90 |
| RX57DR71S4 | 89.71 | 0.75KW | 16.0rpm | 445N.m | 34Kg | 7120N | 1.00 |
| RX57DR71S4 | 80.55 | 0.75KW | 18.0rpm | 400N.m | 34Kg | 7300N | 1.10 |
| RX57DR71S4 | 69.23 | 0.75KW | 21.0rpm | 345N.m | 34Kg | 7470N | 1.30 |
| RX57DR71S4 | 64.85 | 0.75KW | 22.0rpm | 320N.m | 34Kg | 7360N | 1.40 |
| RX57DR71S4 | 57.29 | 0.75KW | 25.0rpm | 285N.m | 34Kg | 7150N | 1.55 |
| RX57DR71S4 | 53.22 | 0.75KW | 27.0rpm | 265N.m | 34Kg | 7030N | 1.70 |
| RX57DR71S4 | 48.23 | 0.75KW | 30.0rpm | 240N.m | 34Kg | 6860N | 1.85 |
| RX57DR71S4 | 43.3 | 0.75KW | 33.0rpm | 215N.m | 34Kg | 6670N | 2.10 |
| RX57DR71S4 | 37.30 | 0.75KW | 38.0rpm | 186N.m | 34Kg | 6420N | 2.40 |
| RX57DR71S4 | 35.07 | 0.75KW | 41.0rpm | 175N.m | 34Kg | 6320N | 2.60 |
| RX57DR71S4 | 30.18 | 0.75KW | 48.0rpm | 151N.m | 34Kg | 6060N | 3.00 |
| RX57DR71S4 | 26.97 | 0.75KW | 53.0rpm | 135N.m | 34Kg | 5880N | 3.30 |
| RX57DR71S4 | 26.31 | 0.75KW | 55.0rpm | 131N.m | 34Kg | 5840N | 3.40 |
| RX57DR71S4 | 24.99 | 0.75KW | 57.0rpm | 125N.m | 34Kg | 5760N | 3.60 |
| RX57DR71S4 | 21.93 | 0.75KW | 65.0rpm | 109N.m | 34Kg | 5540N | 4.10 |
| RX57DR71S4 | 18.60 | 0.75KW | 77.0rpm | 93N.m | 34Kg | 5290N | 4.80 |
RX57DRS71S4電動機減速器類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

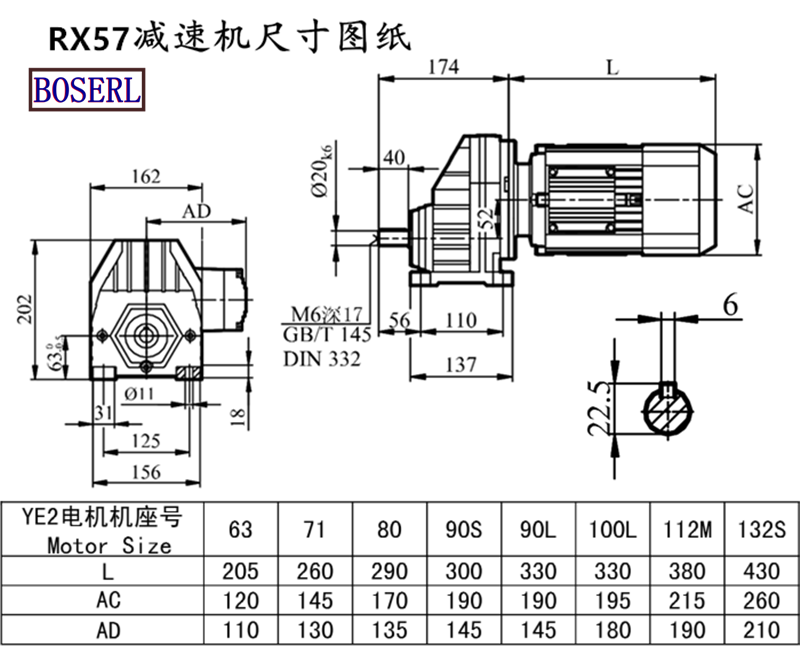

RX57DRS71S4電動機減速器安裝尺寸圖紙
RX57DRS71S4電動機減速器生產工廠展示：看廠請?zhí)崆叭祛A約
電機減速機一體機應用案例展示：
關鍵詞:電機減速機一體機一套_RX系列減速機與電機_減速器電機一體式_電機減速機一體機生產廠家_電機減速機一體機廠家_RXF系列減速機生產廠家_電機減速機一體式
RX系列減速機型號：RX57減速機,RX67減速機,RX77減速機,RX87減速機,RX97減速機,RX107齒輪減速機
RX系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 11千瓦220伏電機減速器 RX57DRS71S4 RX57DR71S4
