SF37DV71S4

訂購熱線：13360667204

詳細信息

關鍵詞：3KW調速減速電機一體機_SF37DV71S4_SF37DM71S4

SF37DV71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
SF37DV71S4	98.80	0.25KW	13.0rpm	108N.m	17kg	3000N	0.80
SF37DV71S4	86.36	0.25KW	15.0rpm	96N.m	17kg	3000N	0.90
SF37DV71S4	80.96	0.25KW	16.0rpm	91N.m	17kg	3000N	0.95
SF37DV71S4	71.44	0.25KW	18.0rpm	81N.m	17kg	3000N	1.05
SF37DV71S4	63.33	0.25KW	21.0rpm	73N.m	17kg	3000N	1.10
SF37DV71S4	55.93	0.25KW	23.0rpm	78N.m	17kg	3000N	1.05
SF37DV71S4	51.30	0.25KW	25.0rpm	72N.m	17kg	3000N	1.15
SF37DV71S4	43.68	0.25KW	30.0rpm	62N.m	17kg	3000N	1.30
SF37DV71S4	37.66	0.25KW	35.0rpm	54N.m	17kg	3000N	1.45
SF37DV71S4	35.10	0.25KW	37.0rpm	51N.m	17kg	3000N	1.55
SF37DV71S4	30.68	0.25KW	42.0rpm	45N.m	17kg	3000N	1.70
SF37DV71S4	28.76	0.25KW	45.0rpm	42N.m	17kg	3000N	1.80
SF37DV71S4	25.38	0.25KW	51.0rpm	37N.m	17kg	3000N	2.00
SF37DV71S4	22.50	0.25KW	58.0rpm	33N.m	17kg	3000N	2.20
SF37DV71S4	19.89	0.25KW	65.0rpm	32N.m	17kg	2870N	1.65
SF37DV71S4	18.24	0.25KW	71.0rpm	29N.m	17kg	2820N	1.80
SF37DV71S4	15.53	0.25KW	84.0rpm	25N.m	17kg	2710N	2.00
SF37DV71S4	13.39	0.25KW	97.0rpm	22N.m	17kg	2620N	2.30
SF37DV71S4	12.48	0.25KW	104rpm	20N.m	17kg	2570N	2.40
SF37DV71S4	10.91	0.25KW	119rpm	18N.m	17kg	2480N	2.70
SF37DV71S4	10.23	0.25KW	127rpm	17N.m	17kg	2440N	2.80
SF37DV71S4	9.02	0.25KW	144rpm	15N.m	17kg	2360N	3.10
SF37DV71S4	8.00	0.25KW	162rpm	13N.m	17kg	2280N	3.40
SF37DV71S4	6.80	0.25KW	191rpm	11N.m	17kg	2180N	3.80

SF37DM71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
SF37DM71S4	98.80	0.25KW	13.0rpm	108N.m	17kg	3000N	0.80
SF37DM71S4	86.36	0.25KW	15.0rpm	96N.m	17kg	3000N	0.90
SF37DM71S4	80.96	0.25KW	16.0rpm	91N.m	17kg	3000N	0.95
SF37DM71S4	71.44	0.25KW	18.0rpm	81N.m	17kg	3000N	1.05
SF37DM71S4	63.33	0.25KW	21.0rpm	73N.m	17kg	3000N	1.10
SF37DM71S4	55.93	0.25KW	23.0rpm	78N.m	17kg	3000N	1.05
SF37DM71S4	51.30	0.25KW	25.0rpm	72N.m	17kg	3000N	1.15
SF37DM71S4	43.68	0.25KW	30.0rpm	62N.m	17kg	3000N	1.30
SF37DM71S4	37.66	0.25KW	35.0rpm	54N.m	17kg	3000N	1.45
SF37DM71S4	35.10	0.25KW	37.0rpm	51N.m	17kg	3000N	1.55
SF37DM71S4	30.68	0.25KW	42.0rpm	45N.m	17kg	3000N	1.70
SF37DM71S4	28.76	0.25KW	45.0rpm	42N.m	17kg	3000N	1.80
SF37DM71S4	25.38	0.25KW	51.0rpm	37N.m	17kg	3000N	2.00
SF37DM71S4	22.50	0.25KW	58.0rpm	33N.m	17kg	3000N	2.20
SF37DM71S4	19.89	0.25KW	65.0rpm	32N.m	17kg	2870N	1.65
SF37DM71S4	18.24	0.25KW	71.0rpm	29N.m	17kg	2820N	1.80
SF37DM71S4	15.53	0.25KW	84.0rpm	25N.m	17kg	2710N	2.00
SF37DM71S4	13.39	0.25KW	97.0rpm	22N.m	17kg	2620N	2.30
SF37DM71S4	12.48	0.25KW	104rpm	20N.m	17kg	2570N	2.40
SF37DM71S4	10.91	0.25KW	119rpm	18N.m	17kg	2480N	2.70
SF37DM71S4	10.23	0.25KW	127rpm	17N.m	17kg	2440N	2.80
SF37DM71S4	9.02	0.25KW	144rpm	15N.m	17kg	2360N	3.10
SF37DM71S4	8.00	0.25KW	162rpm	13N.m	17kg	2280N	3.40
SF37DM71S4	6.80	0.25KW	191rpm	11N.m	17kg	2180N	3.80

SF37DV71S4齒輪減速機馬達類型：

S..DR..底腳安裝斜齒輪自鎖減速機

SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機

SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機

SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機

SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機

SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

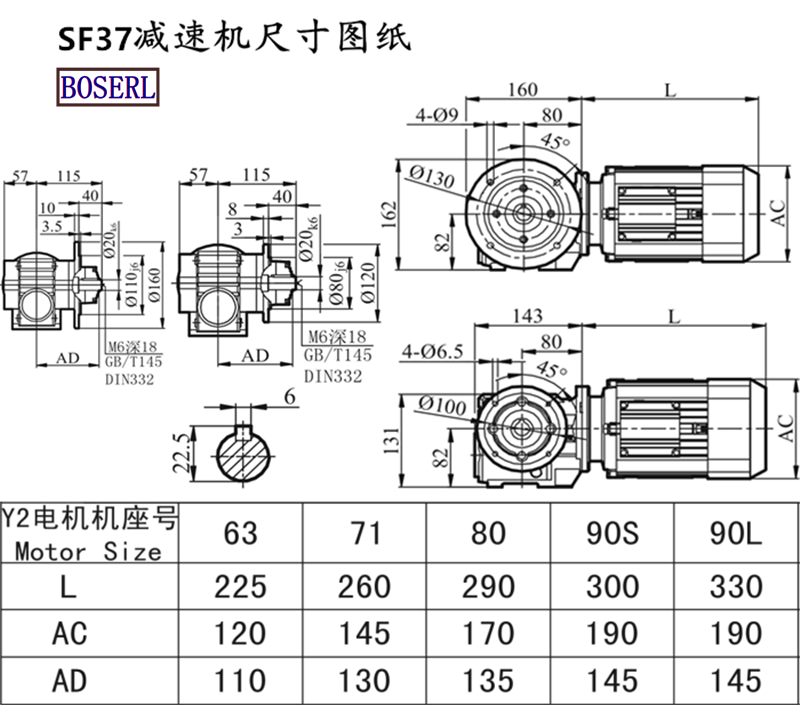

SF37DV71S4齒輪減速機馬達安裝尺寸圖紙


SF37DV71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約

蝸輪蝸桿減速機制造廠家應用案例展示：

關鍵詞:SF系列減速機_低速大扭矩減速器與電機_低轉數高扭矩減速電機一套_低速大扭矩減速機_低轉數大扭矩電機_低轉數大功率電機_SF系列減速機生產廠家

SF系列減速機型號：SF37減速機,SF47減速機,SF57減速機,SF67減速機,SF77減速機,SF87減速機,SF97減速機

SF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求

標簽: 3KW調速減速電機一體機 SF37DV71S4 SF37DM71S4

上一條SF37DRS63L4
下一條SF37DRN71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱	點擊下載
SF37DV71S4減速機樣本
SF37DV71S4減速機三維圖紙
