SAF57DV71S4詳細信息
SAF57DV71S4
訂購熱線：13360667204
關鍵詞：3KW抱閘電機減速器一體機_SAF57DV71S4_SAF57DM71S4
SAF57DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF57DV71S4 | 201.00 | 0.25KW | 6.50rpm | 215N.m | 24kg | 7700N | 1.35 |
| SAF57DV71S4 | 184.80 | 0.25KW | 7.00rpm | 200N.m | 24kg | 7790N | 1.45 |
| SAF57DV71S4 | 158.12 | 0.25KW | 8.20rpm | 176N.m | 24kg | 7920N | 1.70 |
| SAF57DV71S4 | 137.05 | 0.25KW | 9.50rpm | 155N.m | 24kg | 8010N | 1.90 |
| SAF57DV71S4 | 128.10 | 0.25KW | 10.0rpm | 146N.m | 24kg | 8040N | 2.00 |
| SAF57DV71S4 | 110.73 | 0.25KW | 12.0rpm | 128N.m | 24kg | 8110N | 2.30 |
| SAF57DV71S4 | 94.08 | 0.25KW | 14.0rpm | 111N.m | 24kg | 8160N | 2.60 |
| SAF57DV71S4 | 84.00 | 0.25KW | 15.0rpm | 100N.m | 24kg | 8190N | 2.90 |
SAF57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF57DM71S4 | 201.00 | 0.25KW | 6.50rpm | 215N.m | 24kg | 7700N | 1.35 |
| SAF57DM71S4 | 184.80 | 0.25KW | 7.00rpm | 200N.m | 24kg | 7790N | 1.45 |
| SAF57DM71S4 | 158.12 | 0.25KW | 8.20rpm | 176N.m | 24kg | 7920N | 1.70 |
| SAF57DM71S4 | 137.05 | 0.25KW | 9.50rpm | 155N.m | 24kg | 8010N | 1.90 |
| SAF57DM71S4 | 128.10 | 0.25KW | 10.0rpm | 146N.m | 24kg | 8040N | 2.00 |
| SAF57DM71S4 | 110.73 | 0.25KW | 12.0rpm | 128N.m | 24kg | 8110N | 2.30 |
| SAF57DM71S4 | 94.08 | 0.25KW | 14.0rpm | 111N.m | 24kg | 8160N | 2.60 |
| SAF57DM71S4 | 84.00 | 0.25KW | 15.0rpm | 100N.m | 24kg | 8190N | 2.90 |
SAF57DV71S4減速機電動機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

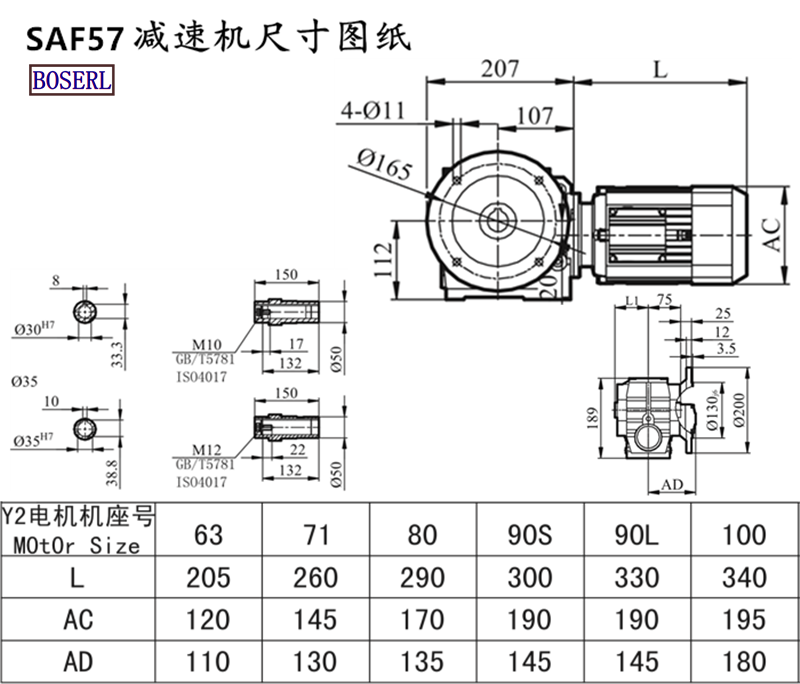

SAF57DV71S4減速機電動機安裝尺寸圖紙
SAF57DV71S4減速機電動機生產工廠展示：看廠請?zhí)崆叭祛A約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 3KW抱閘電機減速器一體機 SAF57DV71S4 SAF57DM71S4
- 上一條SAF57DRN71S4
- 下一條SAF57DR71D4
