R37DVE71S4詳細信息
R37DVE71S4
關鍵詞：輸出轉數338.5圈/分鐘減速機電機_R37DVE71S4_R37DRE71S4_輸出轉數338.5圈一分鐘減速電機_一分鐘轉338.5圈齒輪減速箱馬達_一分鐘轉338.5圈減速器_一分鐘轉338.5圈電機減速機
R37DVE71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DVE71S4 | 134.82 | 0.25KW | 9.60rpm | 245N.m | 18.5kg | 2630N | 0.80 |
| R37DVE71S4 | 123.66 | 0.25KW | 11.0rpm | 225N.m | 18.5kg | 4560N | 0.90 |
| R37DVE71S4 | 105.28 | 0.25KW | 12.0rpm | 193N.m | 18.5kg | 5030N | 1.05 |
| R37DVE71S4 | 90.77 | 0.25KW | 14.0rpm | 167N.m | 18.5kg | 5320N | 1.20 |
| R37DVE71S4 | 84.61 | 0.25KW | 15.0rpm | 155N.m | 18.5kg | 5420N | 1.30 |
| R37DVE71S4 | 73.96 | 0.25KW | 18.0rpm | 136N.m | 18.5kg | 5580N | 1.45 |
| R37DVE71S4 | 69.33 | 0.25KW | 19.0rpm | 127N.m | 18.5kg | 5650N | 1.55 |
| R37DVE71S4 | 61.18 | 0.25KW | 21.0rpm | 112N.m | 18.5kg | 5750N | 1.80 |
| R37DVE71S4 | 55.76 | 0.25KW | 23.0rpm | 102N.m | 18.5kg | 5800N | 1.95 |
| R37DVE71S4 | 48.08 | 0.25KW | 27.0rpm | 88N.m | 18.5kg | 5870N | 2.30 |
| R37DVE71S4 | 44.81 | 0.25KW | 29.0rpm | 82N.m | 18.5kg | 5760N | 2.40 |
| R37DVE71S4 | 39.17 | 0.25KW | 33.0rpm | 72N.m | 18.5kg | 5540N | 2.80 |
| R37DVE71S4 | 36.72 | 0.25KW | 35.0rpm | 67N.m | 18.5kg | 5430N | 3.00 |
| R37DVE71S4 | 32.4 | 0.25KW | 40.0rpm | 60N.m | 18.5kg | 5230N | 3.40 |
R37DRE71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DRE71S4 | 134.82 | 0.25KW | 9.60rpm | 245N.m | 18.5kg | 2630N | 0.80 |
| R37DRE71S4 | 123.66 | 0.25KW | 11.0rpm | 225N.m | 18.5kg | 4560N | 0.90 |
| R37DRE71S4 | 105.28 | 0.25KW | 12.0rpm | 193N.m | 18.5kg | 5030N | 1.05 |
| R37DRE71S4 | 90.77 | 0.25KW | 14.0rpm | 167N.m | 18.5kg | 5320N | 1.20 |
| R37DRE71S4 | 84.61 | 0.25KW | 15.0rpm | 155N.m | 18.5kg | 5420N | 1.30 |
| R37DRE71S4 | 73.96 | 0.25KW | 18.0rpm | 136N.m | 18.5kg | 5580N | 1.45 |
| R37DRE71S4 | 69.33 | 0.25KW | 19.0rpm | 127N.m | 18.5kg | 5650N | 1.55 |
| R37DRE71S4 | 61.18 | 0.25KW | 21.0rpm | 112N.m | 18.5kg | 5750N | 1.80 |
| R37DRE71S4 | 55.76 | 0.25KW | 23.0rpm | 102N.m | 18.5kg | 5800N | 1.95 |
| R37DRE71S4 | 48.08 | 0.25KW | 27.0rpm | 88N.m | 18.5kg | 5870N | 2.30 |
| R37DRE71S4 | 44.81 | 0.25KW | 29.0rpm | 82N.m | 18.5kg | 5760N | 2.40 |
| R37DRE71S4 | 39.17 | 0.25KW | 33.0rpm | 72N.m | 18.5kg | 5540N | 2.80 |
| R37DRE71S4 | 36.72 | 0.25KW | 35.0rpm | 67N.m | 18.5kg | 5430N | 3.00 |
| R37DRE71S4 | 32.4 | 0.25KW | 40.0rpm | 60N.m | 18.5kg | 5230N | 3.40 |

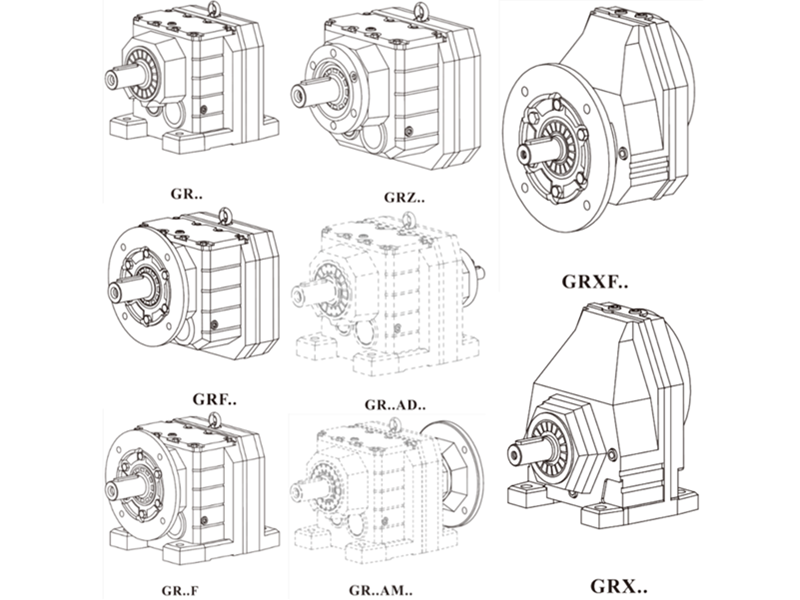

R37DVE71S4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

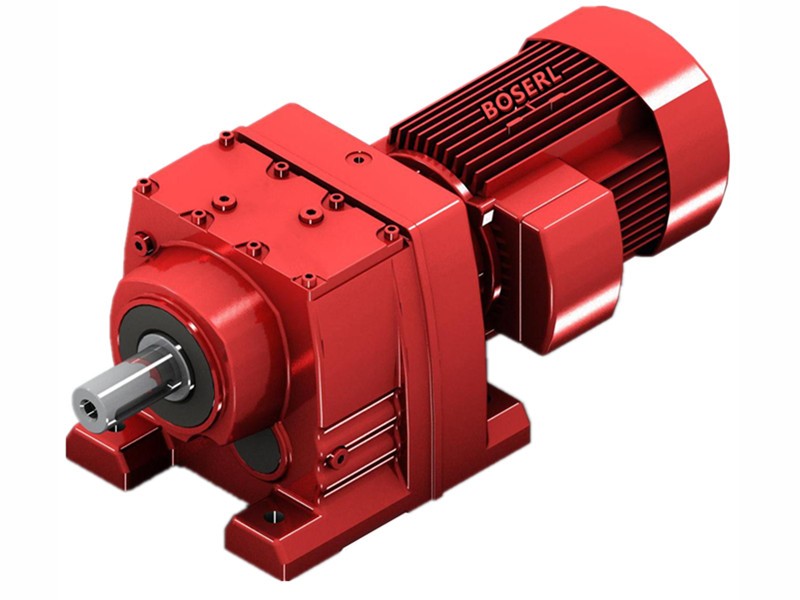

R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

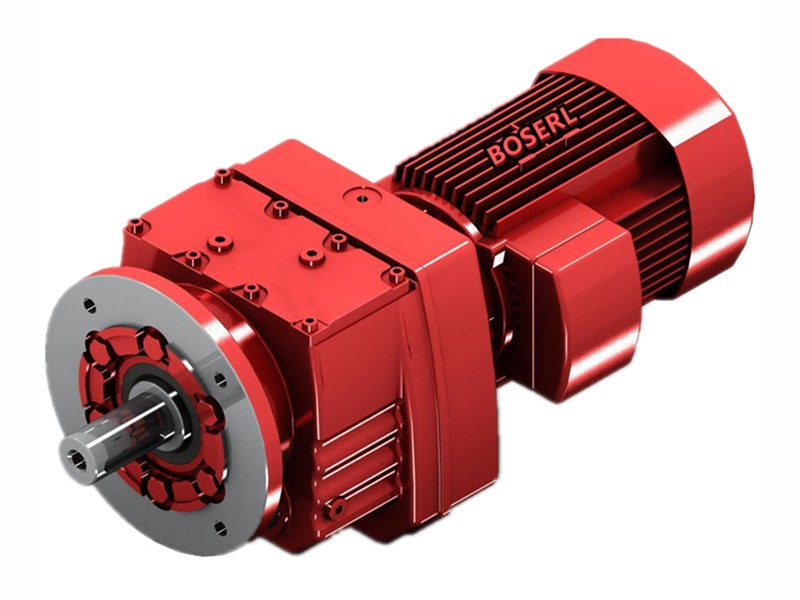

RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

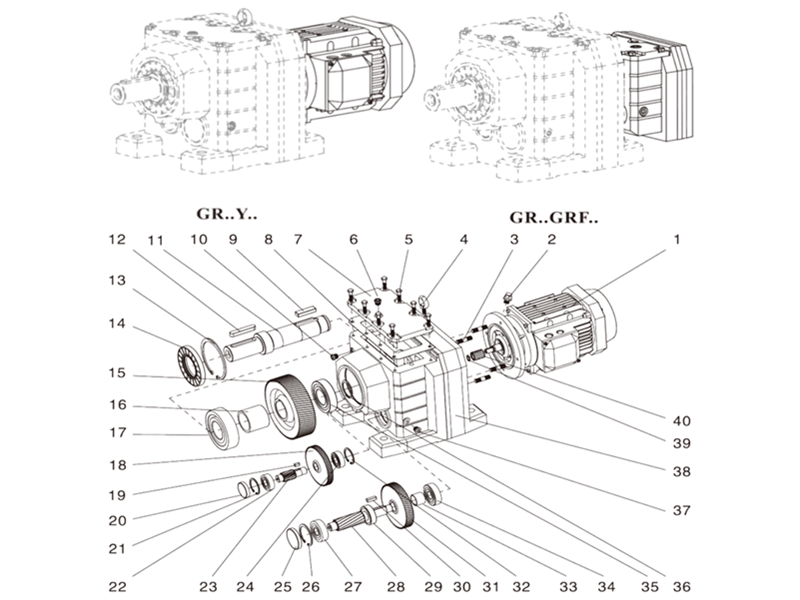

R37DVE71S4齒輪減速機馬達安裝尺寸圖紙
R37DVE71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
