KA107RF77-Y0.25KW詳細信息
KA107RF77-Y0.25KW
關鍵詞：0.37KW電機如何配直角中空減速機_KA107RF77-Y0.25KW_KA107RF77-Y112M4
KA107RF77-Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA107RF77-Y0.25KW | 6184 | 0.25KW | 0.21r/min | 9460N.m | 296kg | 65000N | 0.85 |
| KA107RF77-Y0.25KW | 5662 | 0.25KW | 0.23r/min | 8480N.m | 296kg | 65000N | 0.95 |
| KA107RF77-Y0.25KW | 5138 | 0.25KW | 0.25r/min | 7690N.m | 296kg | 65000N | 1.05 |
| KA107RF77-Y0.25KW | 4359 | 0.25KW | 0.30r/min | 6730N.m | 296kg | 65000N | 1.20 |
| KA107RF77-Y0.25KW | 3810 | 0.25KW | 0.34r/min | 5880N.m | 296kg | 65000N | 1.35 |
| KA107RF77-Y0.25KW | 3358 | 0.25KW | 0.39r/min | 5060N.m | 296kg | 65000N | 1.60 |
| KA107RF77-Y0.25KW | 2977 | 0.25KW | 0.44r/min | 4550N.m | 296kg | 65000N | 1.75 |
| KA107RF77-Y0.25KW | 2599 | 0.25KW | 0.50r/min | 3970N.m | 296kg | 65000N | 2.00 |
| KA107RF77-Y0.25KW | 2286 | 0.25KW | 0.57r/min | 3440N.m | 296kg | 65000N | 2.30 |
| KA107RF77-Y0.25KW | 1939 | 0.25KW | 0.67r/min | 2920N.m | 296kg | 65000N | 2.70 |
| KA107RF77-Y0.25KW | 1713 | 0.25KW | 0.76r/min | 2670N.m | 296kg | 65000N | 3.00 |
| KA107RF77-Y0.25KW | 1554 | 0.25KW | 0.84r/min | 2430N.m | 296kg | 65000N | 3.30 |
| KA107RF77-Y0.25KW | 1336 | 0.25KW | 0.97r/min | 2080N.m | 296kg | 65000N | 3.80 |
KA107RF77-Y112M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA107RF77-Y112M4 | 364 | 4KW | 4.00r/min | 8800N.m | 332kg | 65000N | 0.90 |
| KA107RF77-Y112M4 | 318 | 4KW | 4.60r/min | 7690N.m | 332kg | 65000N | 1.05 |
| KA107RF77-Y112M4 | 286 | 4KW | 5.10r/min | 6920N.m | 332kg | 65000N | 1.15 |
| KA107RF77-Y112M4 | 251 | 4KW | 5.80r/min | 6060N.m | 332kg | 65000N | 1.30 |
| KA107RF77-Y112M4 | 222 | 4KW | 6.60r/min | 5340N.m | 332kg | 65000N | 1.50 |
| KA107RF77-Y112M4 | 196 | 4KW | 7.40r/min | 4730N.m | 332kg | 65000N | 1.70 |
| KA107RF77-Y112M4 | 174 | 4KW | 8.40r/min | 4230N.m | 332kg | 65000N | 1.70 |
| KA107RF77-Y112M4 | 154 | 4KW | 9.50r/min | 3740N.m | 332kg | 65000N | 1.90 |
| KA107RF77-Y112M4 | 140 | 4KW | 10.0r/min | 3400N.m | 332kg | 65000N | 2.10 |
KA107RF77-Y0.25KW減速機類型：
K107RF77-Y0.25KW底腳安裝斜齒輪—傘齒輪減速電機
KA107BRF77-Y0.25KW底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV107BRF77-Y0.25KW底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH107BRF77-Y0.25KW底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF107RF77-Y0.25KWB5法蘭安裝斜齒輪—傘齒輪減速電機
KAF107RF77-Y0.25KWB5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF107RF77-Y0.25KWB5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF107RF77-Y0.25KWB5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA107RF77-Y0.25KW空心軸斜齒輪─傘齒輪減速電機
KV107RF77-Y0.25KW花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH107RF77-Y0.25KW空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT107RF77-Y0.25KW空心軸安裝斜齒輪—傘齒輪減速電機
KAZ107RF77-Y0.25KWB14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ107RF77-Y0.25KWB14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ107RF77-Y0.25KWB14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

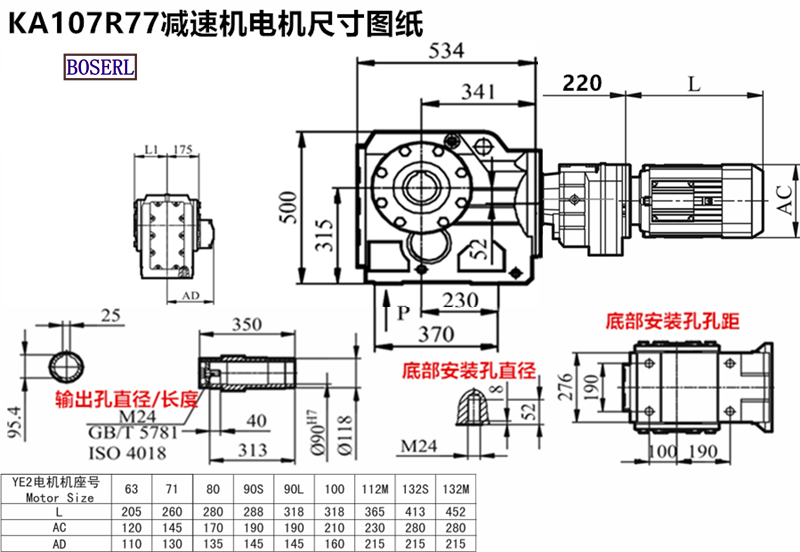

KA107RF77-Y0.25KW減速機馬達安裝尺寸圖紙
KA107RF77-Y0.25KW減速機電機生產廠家，看廠請?zhí)崆叭祛A約雙孔輸出減速電機
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.37KW電機如何配直角中空減速機 KA107RF77-Y0.25KW KA107RF77-Y112M4
