FF57R37DV71S4詳細信息
FF57R37DV71S4
關鍵詞：0.12KW電機能配多大平行軸斜齒輪減速電機_FF57R37DV71S4_FF57R37DRN63L4
FF57R37DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF57R37DV71S4 | 386 | 0.25KW | 3.40r/min | 620N.m | 52.5kg | 8830N | 0.95 |
| FF57R37DV71S4 | 338 | 0.25KW | 3.80r/min | 540N.m | 52.5kg | 9640N | 1.10 |
| FF57R37DV71S4 | 255 | 0.25KW | 5.10r/min | 405N.m | 52.5kg | 10500N | 1.45 |
| FF57R37DV71S4 | 382 | 0.25KW | 3.40r/min | 635N.m | 52.5kg | 7390N | 0.95 |
| FF57R37DV71S4 | 330 | 0.25KW | 3.90r/min | 550N.m | 52.5kg | 9570N | 1.10 |
| FF57R37DV71S4 | 298 | 0.25KW | 4.40r/min | 495N.m | 52.5kg | 9950N | 1.20 |
| FF57R37DV71S4 | 262 | 0.25KW | 5.00r/min | 435N.m | 52.5kg | 10300N | 1.35 |
| FF57R37DV71S4 | 226 | 0.25KW | 5.80r/min | 370N.m | 52.5kg | 10700N | 1.60 |
| FF57R37DV71S4 | 200 | 0.25KW | 6.50r/min | 320N.m | 52.5kg | 11000N | 1.85 |
| FF57R37DV71S4 | 170 | 0.25KW | 7.60r/min | 275N.m | 52.5kg | 11300N | 2.20 |
FF57R37DRN63L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF57R37DRN63L4 | 558 | 0.18KW | 2.40r/min | 635N.m | 48.5kg | 7570N | 0.95 |
| FF57R37DRN63L4 | 506 | 0.18KW | 2.60r/min | 570N.m | 48.5kg | 9420N | 1.05 |
| FF57R37DRN63L4 | 452 | 0.18KW | 2.90r/min | 495N.m | 48.5kg | 9930N | 1.20 |
| FF57R37DRN63L4 | 386 | 0.18KW | 3.40r/min | 425N.m | 48.5kg | 10400N | 1.40 |
| FF57R37DRN63L4 | 338 | 0.18KW | 3.90r/min | 370N.m | 48.5kg | 10700N | 1.60 |
| FF57R37DRN63L4 | 426 | 0.18KW | 3.10r/min | 500N.m | 48.5kg | 9910N | 1.20 |
| FF57R37DRN63L4 | 382 | 0.18KW | 3.50r/min | 445N.m | 48.5kg | 10300N | 1.35 |
| FF57R37DRN63L4 | 330 | 0.18KW | 4.00r/min | 380N.m | 48.5kg | 10700N | 1.55 |
| FF57R37DRN63L4 | 298 | 0.18KW | 4.40r/min | 340N.m | 48.5kg | 10900N | 1.75 |
| FF57R37DRN63L4 | 262 | 0.18KW | 5.00r/min | 300N.m | 48.5kg | 11100N | 2.00 |
| FF57R37DRN63L4 | 226 | 0.18KW | 5.80r/min | 255N.m | 48.5kg | 11400N | 2.30 |
| FF57R37DRN63L4 | 200 | 0.18KW | 6.60r/min | 220N.m | 48.5kg | 11500N | 2.70 |
FF57R37DV71S4減速機電動機類型：
F57R37DV71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA57BR37DV71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV57BR37DV71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA57R37DV71S4空心軸安裝平行軸—斜齒輪減速機
FV57R37DV71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF57R37DV71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF57R37DV71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ57R37DV71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ57R37DV71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF57R37DV71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH57BR37DV71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH57R37DV71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF57R37DV71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ57R37DV71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

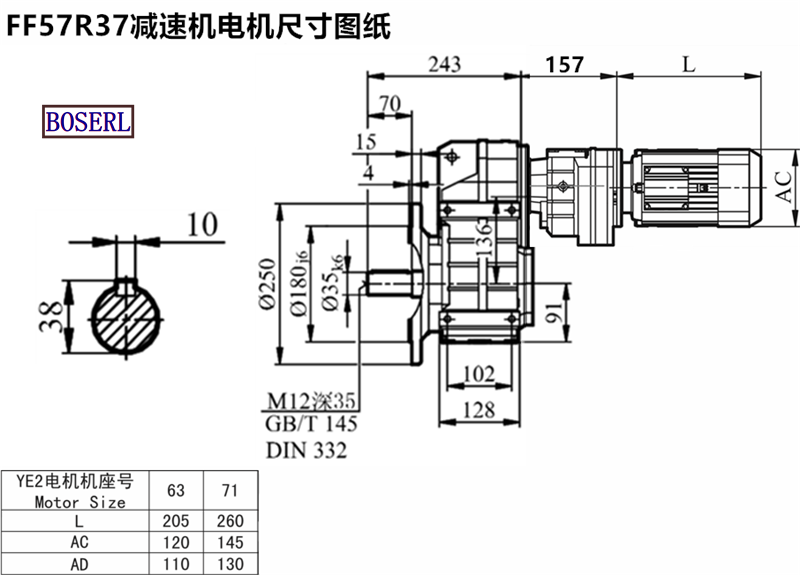

FF57R37DV71S4減速機電動機安裝尺寸圖紙
FF57R37DV71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
