FF107RF77-Y0.25KW詳細信息
FF107RF77-Y0.25KW
關鍵詞：132KW用什么平行軸減速箱_FF107RF77-Y0.25KW_FF107RF77-Y90M4
FF107RF77-Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107RF77-Y0.25KW | 5954 | 0.25KW | 0.22r/min | 9050N.m | 448kg | 46000N | 0.85 |
| FF107RF77-Y0.25KW | 5223 | 0.25KW | 0.25r/min | 7890N.m | 448kg | 49300N | 0.95 |
| FF107RF77-Y0.25KW | 4567 | 0.25KW | 0.28r/min | 7120N.m | 448kg | 51300N | 1.10 |
| FF107RF77-Y0.25KW | 3521 | 0.25KW | 0.37r/min | 5430N.m | 448kg | 55300N | 1.40 |
| FF107RF77-Y0.25KW | 3037 | 0.25KW | 0.43r/min | 4780N.m | 448kg | 56800N | 1.60 |
| FF107RF77-Y0.25KW | 2756 | 0.25KW | 0.47r/min | 4340N.m | 448kg | 57700N | 1.75 |
| FF107RF77-Y0.25KW | 2369 | 0.25KW | 0.55r/min | 3730N.m | 448kg | 59000N | 2.10 |
| FF107RF77-Y0.25KW | 2068 | 0.25KW | 0.63r/min | 3250N.m | 448kg | 59900N | 2.40 |
| FF107RF77-Y0.25KW | 1597 | 0.25KW | 0.81r/min | 2490N.m | 448kg | 61300N | 3.10 |
| FF107RF77-Y0.25KW | 1401 | 0.25KW | 0.93r/min | 2150N.m | 448kg | 61900N | 3.60 |
FF107RF77-Y90M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107RF77-Y90M4 | 1243 | 1.1KW | 1.10r/min | 8350N.m | 458kg | 48000N | 0.90 |
| FF107RF77-Y90M4 | 1087 | 1.1KW | 1.30r/min | 7380N.m | 458kg | 50600N | 1.05 |
| FF107RF77-Y90M4 | 950 | 1.1KW | 1.50r/min | 6380N.m | 458kg | 53100N | 1.20 |
| FF107RF77-Y90M4 | 834 | 1.1KW | 1.70r/min | 5570N.m | 458kg | 55000N | 1.40 |
| FF107RF77-Y90M4 | 736 | 1.1KW | 1.90r/min | 4890N.m | 458kg | 56500N | 1.55 |
| FF107RF77-Y90M4 | 6405 | 1.1KW | 2.20r/min | 4310N.m | 458kg | 7800N | 1.80 |

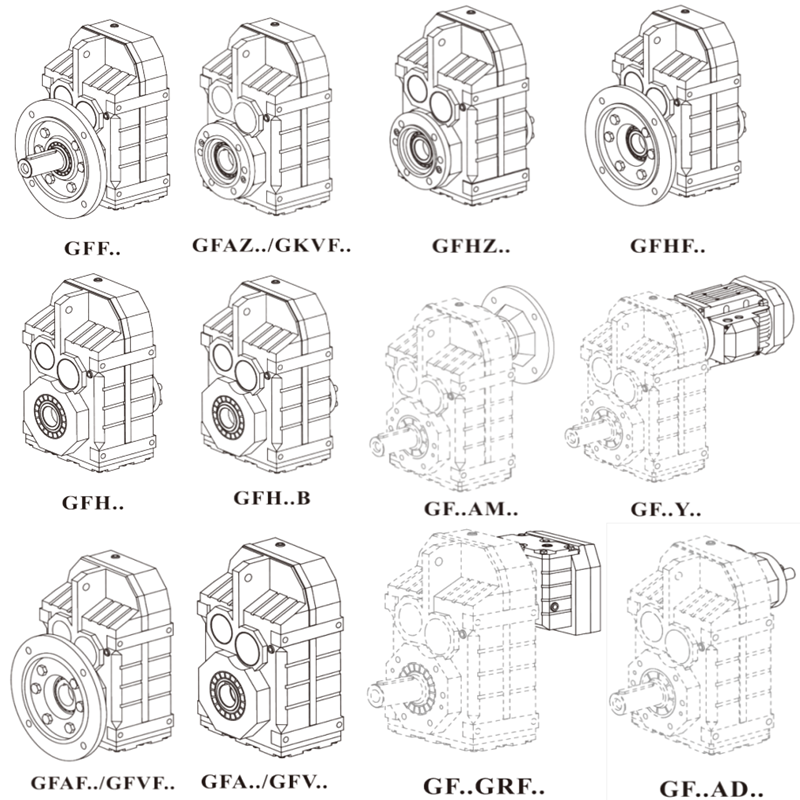

FF107RF77-Y0.25KW減速機電動機類型：
F107RF77-Y0.25KW底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA107BRF77-Y0.25KW底腳空心軸安裝平行軸—斜齒輪減速機
FV107BRF77-Y0.25KW底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA107RF77-Y0.25KW空心軸安裝平行軸—斜齒輪減速機
FV107RF77-Y0.25KW花鍵空心軸安裝平行軸—斜齒輪減速機
FAF107RF77-Y0.25KW是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF107RF77-Y0.25KW是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ107RF77-Y0.25KW是B14法蘭安裝平行軸—斜齒輪減速機
FVZ107RF77-Y0.25KW是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF107RF77-Y0.25KW是B5法蘭安裝平行軸—斜齒輪減速機
FH107BRF77-Y0.25KW底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH107RF77-Y0.25KW是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF107RF77-Y0.25KW是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ107RF77-Y0.25KW是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

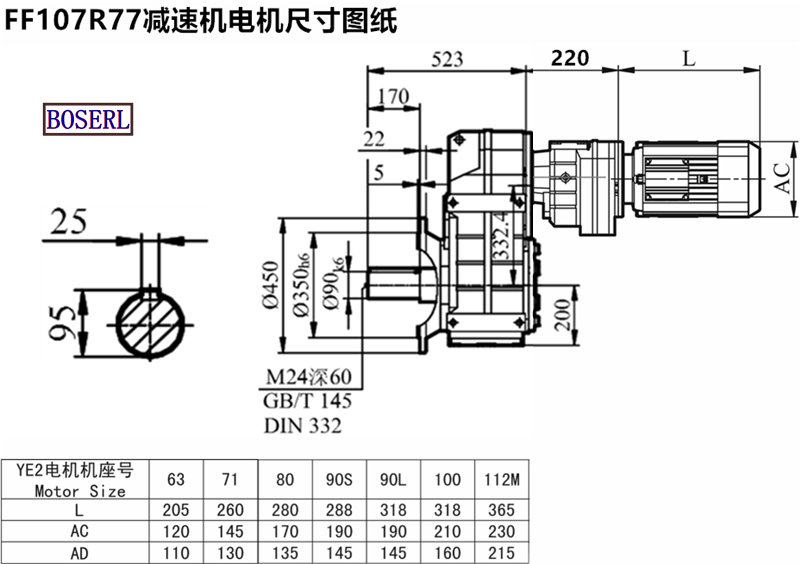

FF107RF77-Y0.25KW減速機電動機安裝尺寸圖紙
FF107RF77-Y0.25KW減速機電動機生產廠家，看廠請?zhí)崆叭祛A約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 132KW用什么平行軸減速箱 FF107RF77-Y0.25KW FF107RF77-Y90M4
