平行軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速機廠家 > FAF系列減速機廠家

FAF27DRE63M4詳細信息

prevnext

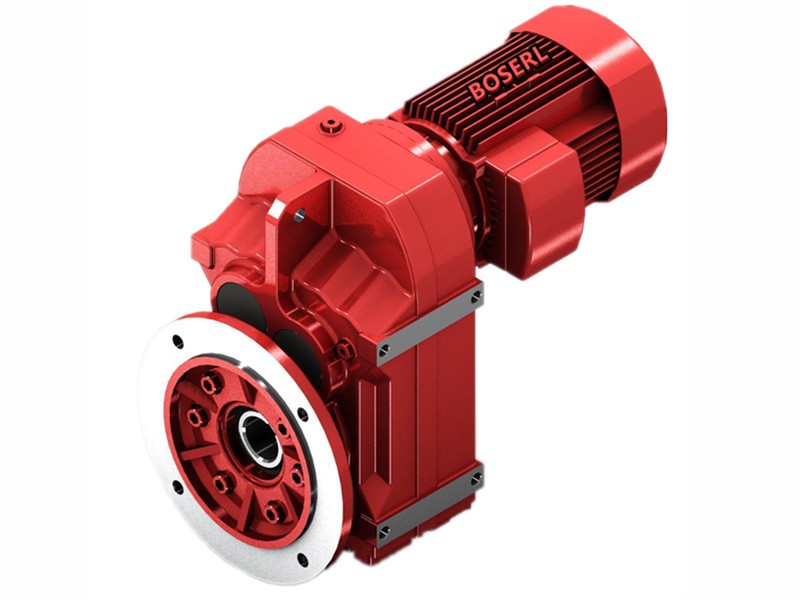

FAF27DRE63M4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：一分鐘346轉減速機電機_FAF27DRE63M4_FAF27DM63M4

FAF27DRE63M4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FAF27DRE63M4140.740.12KW9.80rpm117N.m15.5Kg4500N1.10
FAF27DRE63M4129.090.12KW11.0rpm107N.m15.5Kg4500N1.20
FAF27DRE63M4109.900.12KW13.0rpm91N.m15.5Kg4500N1.40
FAF27DRE63M494.760.12KW15.0rpm79N.m15.5Kg4500N1.65
FAF27DRE63M488.320.12KW16.0rpm73N.m15.5Kg4500N1.75
FAF27DRE63M477.210.12KW18.0rpm64N.m15.5Kg4500N2.00
FAF27DRE63M472.370.12KW19.0rpm60N.m15.5Kg4500N2.20
FAF27DRE63M463.860.12KW22.0rpm53N.m15.5Kg4500N2.40
FAF27DRE63M456.620.12KW24.0rpm47N.m15.5Kg4500N2.80
FAF27DRE63M450.190.12KW28.0rpm42N.m15.5Kg4500N3.10
FAF27DRE63M446.780.12KW30.0rpm39N.m15.5Kg4500N3.40
FAF27DRE63M440.890.12KW34.0rpm34N.m15.5Kg4500N3.80
FAF27DRE63M438.330.12KW36.0rpm32N.m15.5Kg4430N4.10
FAF27DRE63M433.830.12KW41.0rpm28N.m15.5Kg4270N4.60
FAF27DRE63M429.560.12KW47.0rpm24N.m15.5Kg4100N5.30
FAF27DRE63M427.180.12KW51.0rpm23N.m15.5Kg4000N5.80
FAF27DRE63M423.250.12KW59.0rpm19N.m15.5Kg3820N6.70
FAF27DRE63M420.150.12KW68.0rpm17N.m15.5Kg3650N7.80
FAF27DRE63M418.840.12KW73.0rpm16N.m15.5Kg3580N8.30
FAF27DRE63M416.280.12KW85.0rpm14N.m15.5Kg3420N9.60
FAF27DRE63M413.840.12KW100rpm12N.m15.5Kg3250N11.0
FAF27DRE63M412.350.12KW112rpm10N.m15.5Kg3140N13.0
FAF27DRE63M410.550.12KW131rpm8.8N.m15.5Kg2990N15.0
FAF27DRE63M49.880.12KW140rpm8.2N.m15.5Kg2920N16.0
FAF27DRE63M49.400.12KW147rpm7.8N.m15.5Kg2870N17.0
FAF27DRE63M48.130.12KW170rpm6.7N.m15.5Kg2740N18.0
FAF27DRE63M46.910.12KW200rpm5.7N.m15.5Kg2600N20.0
FAF27DRE63M46.170.12KW224rpm5.1N.m15.5Kg2510N21.0
FAF27DRE63M45.270.12KW262rpm4.4N.m15.5Kg2390N23.0
FAF27DRE63M44.930.12KW280rpm4.1N.m15.5Kg2340N23.0
FAF27DRE63M44.160.12KW332rpm3.5N.m15.5Kg2210N25.0

FAF27DM63M4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FAF27DM63M4140.740.12KW9.80rpm117N.m15.5Kg4500N1.10
FAF27DM63M4129.090.12KW11.0rpm107N.m15.5Kg4500N1.20
FAF27DM63M4109.900.12KW13.0rpm91N.m15.5Kg4500N1.40
FAF27DM63M494.760.12KW15.0rpm79N.m15.5Kg4500N1.65
FAF27DM63M488.320.12KW16.0rpm73N.m15.5Kg4500N1.75
FAF27DM63M477.210.12KW18.0rpm64N.m15.5Kg4500N2.00
FAF27DM63M472.370.12KW19.0rpm60N.m15.5Kg4500N2.20
FAF27DM63M463.860.12KW22.0rpm53N.m15.5Kg4500N2.40
FAF27DM63M456.620.12KW24.0rpm47N.m15.5Kg4500N2.80
FAF27DM63M450.190.12KW28.0rpm42N.m15.5Kg4500N3.10
FAF27DM63M446.780.12KW30.0rpm39N.m15.5Kg4500N3.40
FAF27DM63M440.890.12KW34.0rpm34N.m15.5Kg4500N3.80
FAF27DM63M438.330.12KW36.0rpm32N.m15.5Kg4430N4.10
FAF27DM63M433.830.12KW41.0rpm28N.m15.5Kg4270N4.60
FAF27DM63M429.560.12KW47.0rpm24N.m15.5Kg4100N5.30
FAF27DM63M427.180.12KW51.0rpm23N.m15.5Kg4000N5.80
FAF27DM63M423.250.12KW59.0rpm19N.m15.5Kg3820N6.70
FAF27DM63M420.150.12KW68.0rpm17N.m15.5Kg3650N7.80
FAF27DM63M418.840.12KW73.0rpm16N.m15.5Kg3580N8.30
FAF27DM63M416.280.12KW85.0rpm14N.m15.5Kg3420N9.60
FAF27DM63M413.840.12KW100rpm12N.m15.5Kg3250N11.0
FAF27DM63M412.350.12KW112rpm10N.m15.5Kg3140N13.0
FAF27DM63M410.550.12KW131rpm8.8N.m15.5Kg2990N15.0
FAF27DM63M49.880.12KW140rpm8.2N.m15.5Kg2920N16.0
FAF27DM63M49.400.12KW147rpm7.8N.m15.5Kg2870N17.0
FAF27DM63M48.130.12KW170rpm6.7N.m15.5Kg2740N18.0
FAF27DM63M46.910.12KW200rpm5.7N.m15.5Kg2600N20.0
FAF27DM63M46.170.12KW224rpm5.1N.m15.5Kg2510N21.0
FAF27DM63M45.270.12KW262rpm4.4N.m15.5Kg2390N23.0
FAF27DM63M44.930.12KW280rpm4.1N.m15.5Kg2340N23.0
FAF27DM63M44.160.12KW332rpm3.5N.m15.5Kg2210N25.0

FAF27DRE63M4減速機電動機類型：

F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機

FA..B底腳空心軸安裝平行軸—斜齒輪減速機

FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機

FA..空心軸安裝平行軸—斜齒輪減速機

FV..花鍵空心軸安裝平行軸—斜齒輪減速機

FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機

FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FAZ..是B14法蘭安裝平行軸—斜齒輪減速機

FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FF..是B5法蘭安裝平行軸—斜齒輪減速機

FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

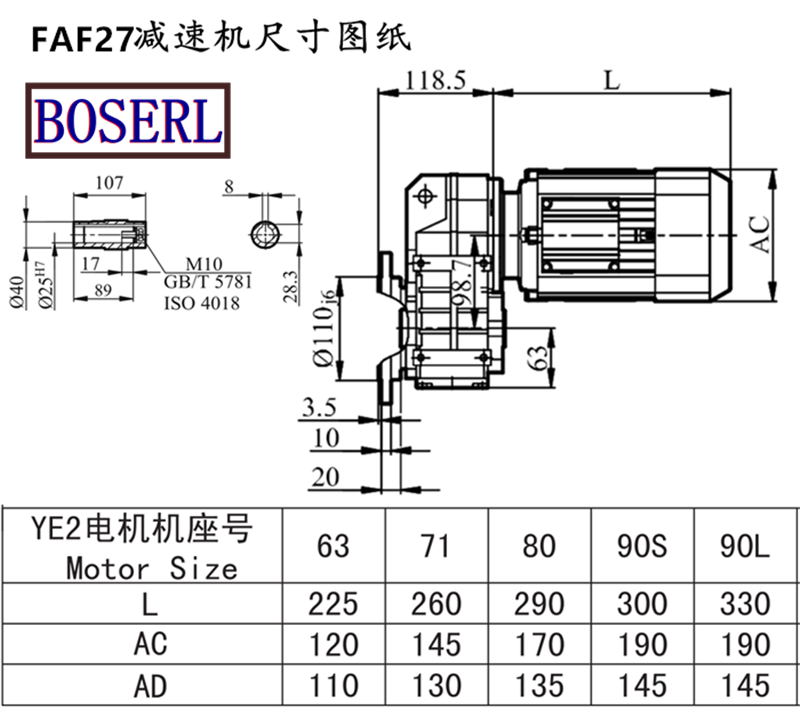

FAF27DRE63M4減速機電動機安裝尺寸圖紙



FAF27DRE63M4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機

關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家

FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機

FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   一分鐘346轉減速機電機 FAF27DRE63M4 FAF27DM63M4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FAF27DRE63M4減速機樣本 點擊下載
FAF27DRE63M4減速機三維圖紙 點擊下載
