平行軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速機廠家 > FA系列減速機廠家

FA27DRS71S4詳細信息

prevnext

FA27DRS71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：一分鐘215轉減速機電機_FA27DRS71S4_FA27DR71S4

FA27DRS71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FA27DRS71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FA27DRS71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FA27DRS71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FA27DRS71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FA27DRS71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FA27DRS71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FA27DRS71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FA27DRS71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FA27DRS71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FA27DRS71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FA27DRS71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FA27DRS71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FA27DRS71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FA27DRS71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FA27DRS71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FA27DRS71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FA27DRS71S412.350.25KW105rpm23N.m20Kg3090N5.70
FA27DRS71S410.550.25KW123rpm19N.m20Kg2950N6.70
FA27DRS71S49.880.25KW132rpm18N.m20Kg2900N7.20
FA27DRS71S49.400.25KW138rpm17N.m20Kg2840N7.50
FA27DRS71S48.130.25KW160rpm15N.m20Kg2720N8.30
FA27DRS71S46.910.25KW188rpm13N.m20Kg2590N9.00
FA27DRS71S46.170.25KW211rpm11N.m20Kg2500N9.60
FA27DRS71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FA27DRS71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FA27DRS71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

FA27DR71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
FA27DR71S477.210.25KW17.0rpm142N.m20Kg4500N0.90
FA27DR71S472.370.25KW18.0rpm133N.m20Kg4500N1.00
FA27DR71S463.860.25KW20.0rpm117N.m20Kg4500N1.10
FA27DR71S456.620.25KW23.0rpm104N.m20Kg4500N1.25
FA27DR71S450.190.25KW26.0rpm92N.m20Kg4440N1.40
FA27DR71S446.780.25KW28.0rpm86N.m20Kg4370N1.50
FA27DR71S440.890.25KW32.0rpm75N.m20Kg4240N1.75
FA27DR71S438.330.25KW34.0rpm70N.m20Kg4180N1.85
FA27DR71S433.830.25KW38.0rpm62N.m20Kg4060N2.10
FA27DR71S429.560.25KW44.0rpm54N.m20Kg3920N2.40
FA27DR71S427.180.25KW48.0rpm50N.m20Kg3840N2.60
FA27DR71S423.250.25KW56.0rpm43N.m20Kg3690N3.00
FA27DR71S420.150.25KW64.0rpm37N.m20Kg3550N3.50
FA27DR71S418.840.25KW69.0rpm35N.m20Kg3480N3.80
FA27DR71S416.280.25KW80.0rpm30N.m20Kg3350N4.40
FA27DR71S413.840.25KW94.0rpm25N.m20Kg3200N5.10
FA27DR71S412.350.25KW105rpm23N.m20Kg3090N5.70
FA27DR71S410.550.25KW123rpm19N.m20Kg2950N6.70
FA27DR71S49.880.25KW132rpm18N.m20Kg2900N7.20
FA27DR71S49.400.25KW138rpm17N.m20Kg2840N7.50
FA27DR71S48.130.25KW160rpm15N.m20Kg2720N8.30
FA27DR71S46.910.25KW188rpm13N.m20Kg2590N9.00
FA27DR71S46.170.25KW211rpm11N.m20Kg2500N9.60
FA27DR71S45.270.25KW247rpm9.7N.m20Kg2380N10.0
FA27DR71S44.930.25KW264rpm9.1N.m20Kg2340N11.0
FA27DR71S44.160.25KW313rpm7.6N.m20Kg2220N11.0

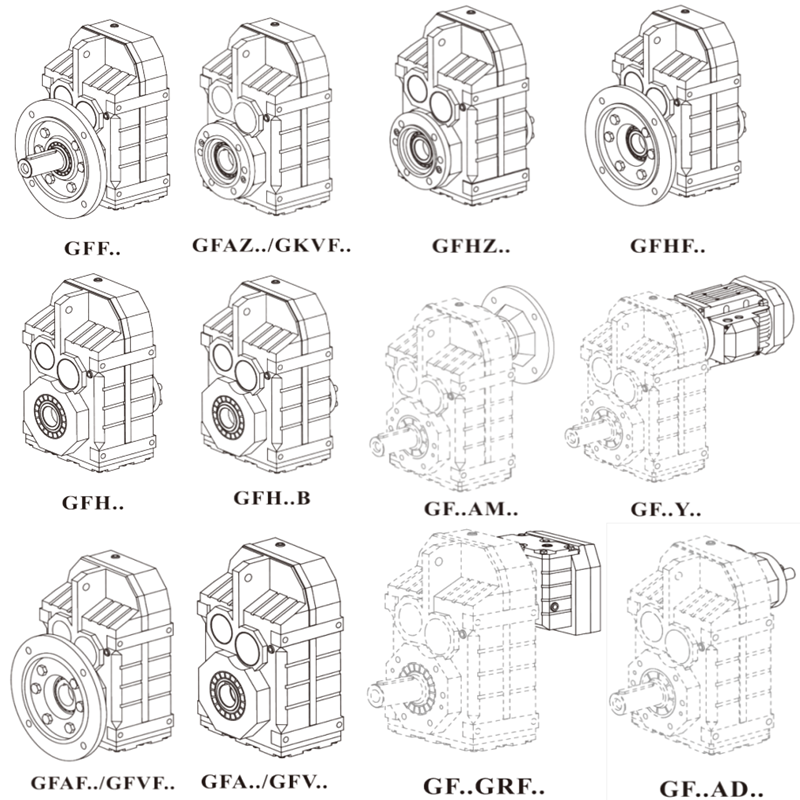

FA27DRS71S4齒輪減速機馬達類型：

F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機

FA..B底腳空心軸安裝平行軸—斜齒輪減速機

FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機

FA..空心軸安裝平行軸—斜齒輪減速機

FV..花鍵空心軸安裝平行軸—斜齒輪減速機

FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機

FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FAZ..是B14法蘭安裝平行軸—斜齒輪減速機

FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FF..是B5法蘭安裝平行軸—斜齒輪減速機

FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

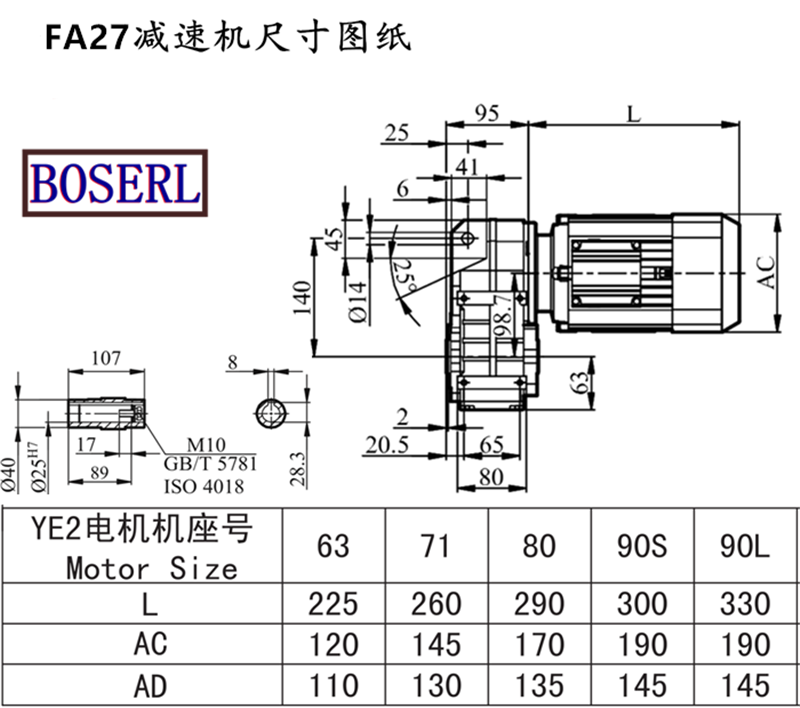

FA27DRS71S4齒輪減速機馬達安裝尺寸圖紙



FA27DRS71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機

關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家

FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機

FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   一分鐘215轉減速機電機 FA27DRS71S4 FA27DR71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA27DRS71S4減速機樣本 點擊下載
FA27DRS71S4減速機三維圖紙 點擊下載
