FA127R77DV71S4詳細信息
FA127R77DV71S4
關鍵詞：0.12KW電機配多大的平行軸減速機_FA127R77DV71S4_FA127R77DRN100LC4
FA127R77DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127R77DV71S4 | 8831 | 0.25KW | 0.15r/min | 13300N.m | 746kg | 87900N | 0.90 |
| FA127R77DV71S4 | 7643 | 0.25KW | 0.17r/min | 11500N.m | 746kg | 90000N | 1.05 |
| FA127R77DV71S4 | 6715 | 0.25KW | 0.19r/min | 10400N.m | 746kg | 90000N | 1.15 |
| FA127R77DV71S4 | 5925 | 0.25KW | 0.22r/min | 9230N.m | 746kg | 90000N | 1.30 |
| FA127R77DV71S4 | 5153 | 0.25KW | 0.25r/min | 7940N.m | 746kg | 90000N | 1.50 |
| FA127R77DV71S4 | 4533 | 0.25KW | 0.29r/min | 6890N.m | 746kg | 90000N | 1.75 |
FA127R77DRN100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127R77DRN100LC4 | 727 | 3KW | 2.00r/min | 13200N.m | 771kg | 88100N | 0.90 |
| FA127R77DRN100LC4 | 648 | 3KW | 2.20 r/min | 11800N.m | 771kg | 90000N | 1.00 |
| FA127R77DRN100LC4 | 549 | 3KW | 2.60r/min | 10000N.m | 771kg | 90000N | 1.20 |
| FA127R77DRN100LC4 | 495 | 3KW | 2.90r/min | 9040N.m | 771kg | 90000N | 1.35 |

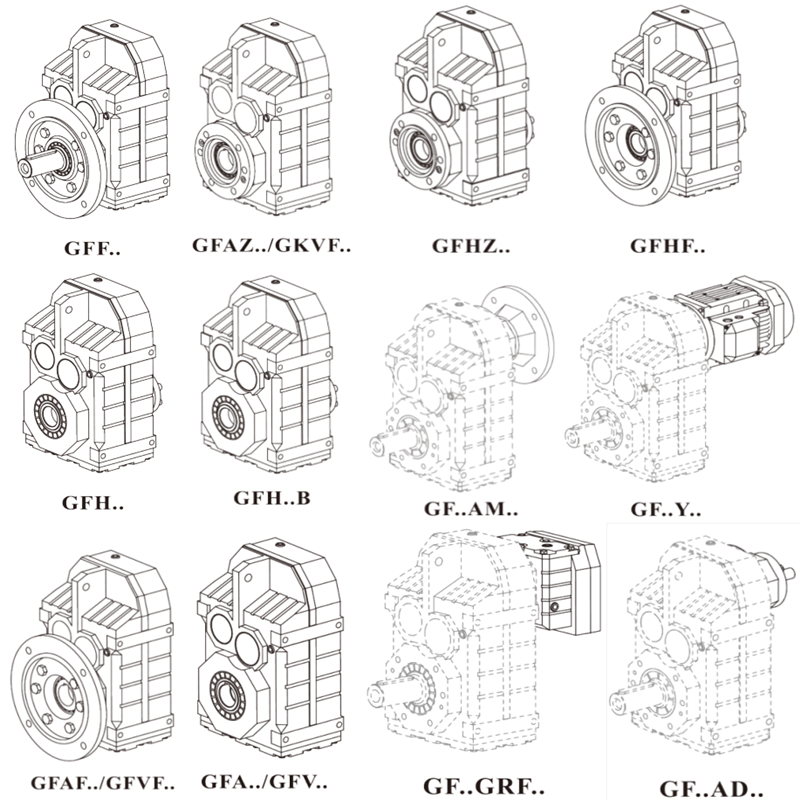

FA127R77DV71S4減速機電動機類型：
F127R77DV71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA127BR77DV71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV127BR77DV71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA127R77DV71S4空心軸安裝平行軸—斜齒輪減速機
FV127R77DV71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF127R77DV71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF127R77DV71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ127R77DV71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ127R77DV71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF127R77DV71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH127BR77DV71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH127R77DV71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF127R77DV71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ127R77DV71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

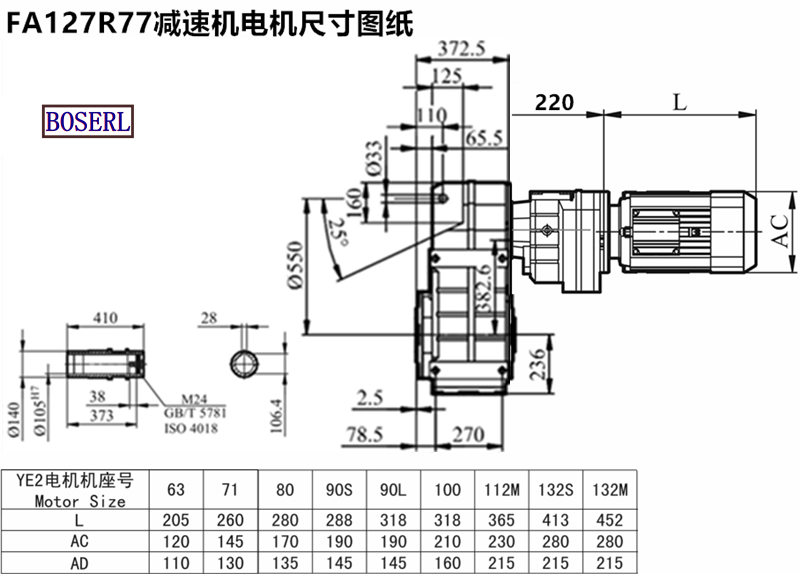

FA127R77DV71S4減速機電動機安裝尺寸圖紙
FA127R77DV71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.12KW電機配多大的平行軸減速機 FA127R77DV71S4 FA127R77DRN100LC4
